HEINRICH LIMITED is UK based company Head Office based in London. Heinrich is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings, Airport, Metro, Hotels, Auditorium, Live Music Performance. Heinrich solutions help customers achieve savings in energy, time and cost, all while enhancing safety.

Heinrich is leading manufacturer of Public address and Voice Alarm and 3D integrated Control System, Heinrich has unrivaled experience in supplying systems and services to major projects spanning all over the world to serve better with high quality product and series.

Solution

Heinrich have a complete solution for Airports, Metro/Railways, Auditoriums, Oil & Gas, Tunnels, Hotels, Hospitals, Corporate, Stadiums, Conferencing Rooms etc.

Use Of System

  • Support more than 8kms speech and voice alarm sound system.
  • Fully dublex IP addressable network audio system.
  • Pre-recorded voice message scheduled broadcast.
  • Emergency intercom communication with duty traffic policeman.
  • Sound system synchronized operation with CCTV camera system.
  • On site environment ambient noise level collection.
  • Intercom communication recording system.
  • Intercom station automatic transfer system.
  • Intercom station hold-on system.
  • Horn speaker for outdoor environment use.
  • High SPL projection horn for clear human speech long distance dispersion use.

Product

We offer product from some of best in industry and have a wide experience in product development and technological advancement as per the critical safety requirements. All our R&D Engineers, Technical support and production team are familiar with the complete inside-outside of the products.

CDS40/T
    CDS40/T
  • High sound pressure level; 127 dB / 40W.
  • High directivity, With a high STI value.
  • Manufactured from black halogen free flame retardant plastic material to 5VA standard.
  • Stainless steel fixing brackets (316) for easy and safe installation on flat or curved surfaces and allow excellent angle of adjustment.
  • Weather proof to IP-67.
  • An industry standard UNEF 1 3/8’’ -18 driver thread.
NAP4S

The NAP4S is a compact four zone IP/TCP network audio system solution, which is integrated four separated network audio adapters into a chassis, each network audio adapter is of different IP address from others.

NAP4S
  • 19 ruck mount IP/TCP network audio adapter in 2U height.
  • Decode digital audio data to analogue amplifier different program to different zones simultaneously.
  • Heart of IP background music, zone paging & voice alarm system.
  • Local aux input for each zone.
  • One all zone mic input and One all zone aux input with optional priority setting.
  • One communication control port and one redundancy port both by RJ45 type.
  • Four reserved serial port for write in and change IP address use only.

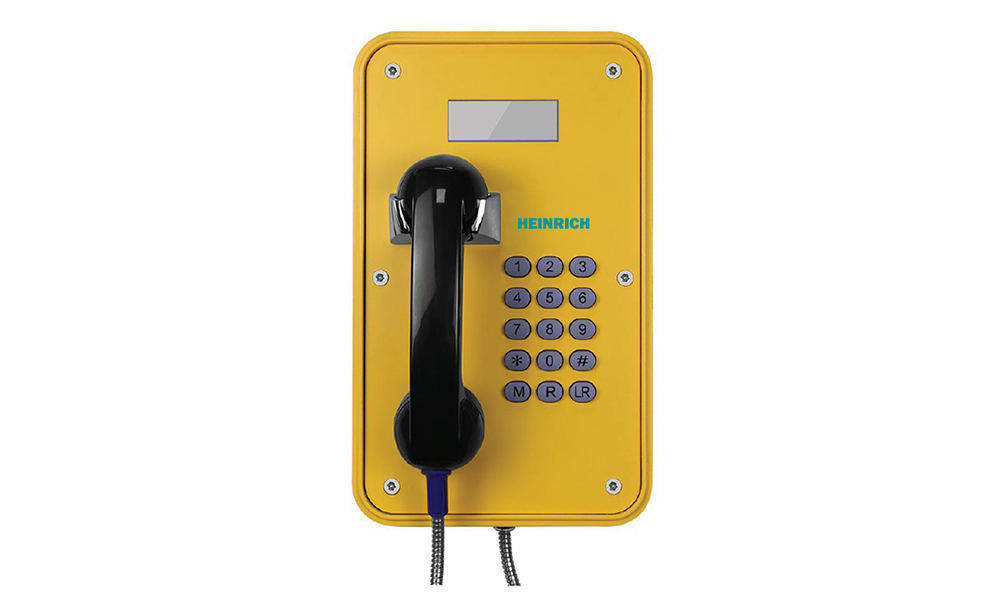

HNEX105-FK-SIP

HNEX105-FK-SIP Weatherproof Telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF. The unique robust handset is manufactured from moulded bulk molding compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use. HNEX105-FK-SIP Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.

HNEX105-FK-SIP
  • Standard SIP phone with LCD display.
  • Vandal resistant handset and cord.
  • Weather proof protection to IP66.
  • Waterproof full keypad.
  • “LR” button for last number redial.
  • “R” for flash recall.
  • “M” for muting.
  • Wall mounting, Easy for installation.
  • PoE or external power supply (SIP-VoIP).
  • RJ45 port for SIP Phone.

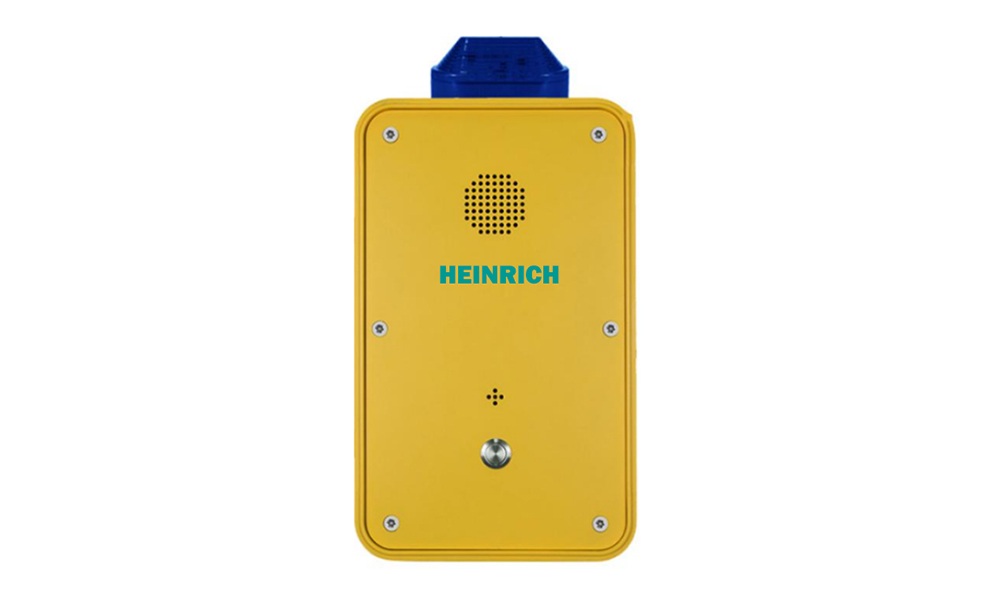

H104-SC-L-SIP

The H100 series telephones are fully contained within a corrosion resistant cast aluminum weatherproof case and cold rolled steel faceplate with epoxy powder coated providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF. Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage resistant. The H100 series Weatherproof Telephones are designed for use by the highway, railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.

H104-SC-L-SIP
  • Standard VoIP­SIP phone.
  • Aluminum alloy die ­ casting body.
  • Vandal resistant metal button.
  • Hands free operation.
  • One button for emergency call.
  • With Led beacon on top.
  • Weather proof protection to IP66­-IP67.
  • Wall mounting, simple installation.
  • RJ45 port for SIP phone.
  • External power supply or PoE (SIP­ VoIP).
  • CE,FCC,ROSH,IP67,ISO9001 compliant.

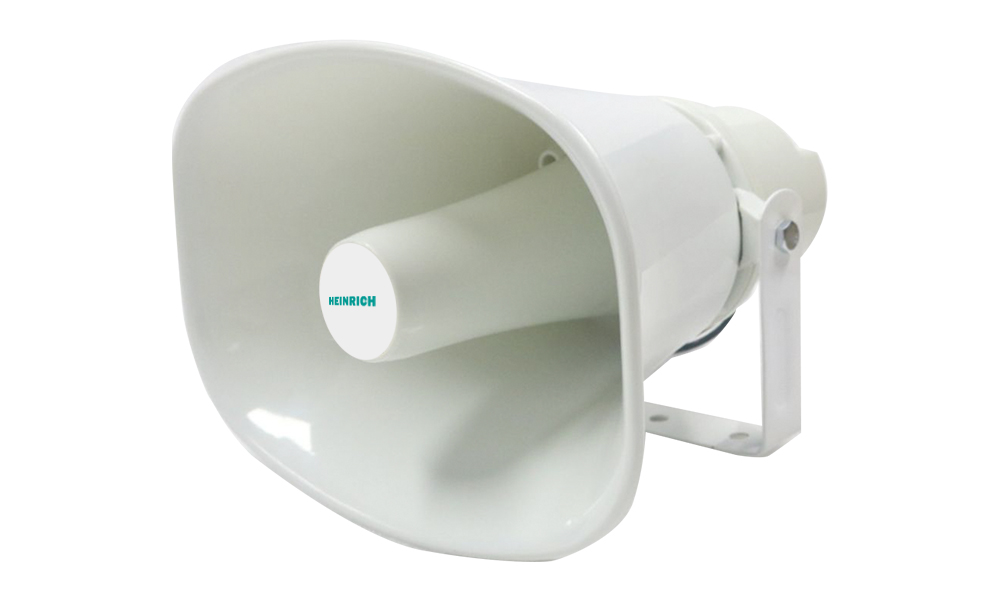

IP-HS25/T

SIP Speaker IP-HS25/T is designed for outdoor environments. It allows users to remotely warn off intruders before they commit a crime, to deliver instructions during an emergency or to make general voice messages. The SIP speaker also support to play a prerecord audio file manually or automatically in response to an alarm event. Open standards support easy integration with network video, access control and VoIP (supporting SIP). IP-HS25/T is a standalone unit that can be placed almost anywhere, which supports a flexible, stable and cost­ effective approach to system design.

IP-HS25T
  • All­-in-­one speaker system.
  • Connect to standard network.
  • PoE, Simple installation.
  • Impact ­resistant engineering plastic.
  • IP65 - ­IP66­ rated.

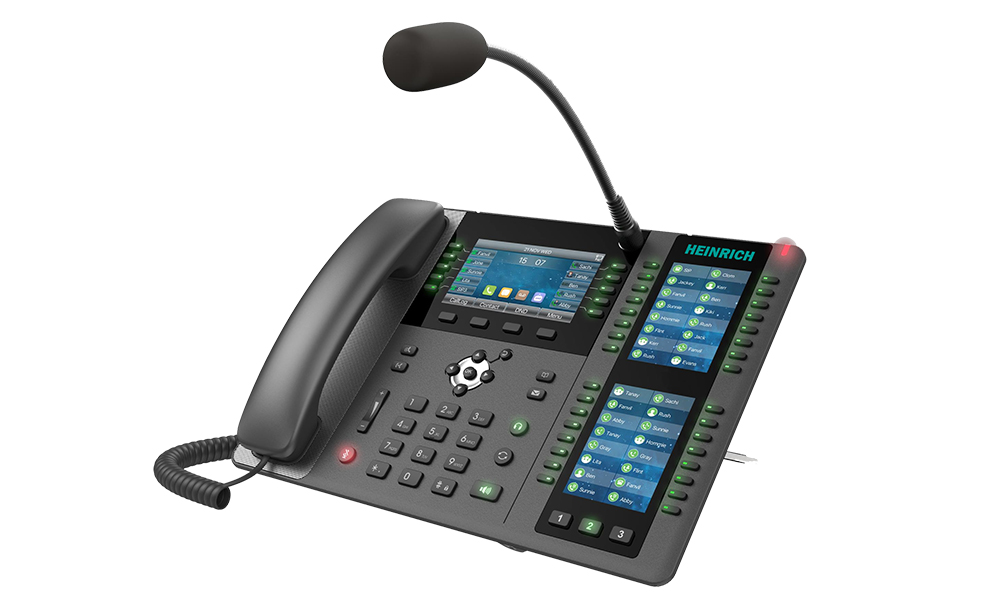

H500-02

The H500-02 product is a visualization paging console phone for industry customer. It is equipped with a gooseneck microphone and supports HD hands­free calling. With intelligent programmable DSS buƩons, you can set up a one­ click call function to improve communication efficiency. It is compatible with the standard SIP protocol and can be used as a monitoring center or host for office manager with functions such as make calls for external & internal phones, two­ way intercom, monitoring, and broadcasting. The product improves the management efficiency and emergency response capabilities.

H500-02
  • 20 SIP lines, 3­way conference, hotspot.
  • HD audio on speakerphone and handset.
  • Movable type Directional External Gooseneck Microphone.
  • 4.3” main color display, 2x3.5” side color displays for DSS keys.
  • Built-in Bluetooth.
  • Wi-Fi connectivity (Via Wi-Fi dongle).
  • Up to 106 DSS keys (42 tri-colored physical keys).
  • Video Codec H.264 support for receiving video calls.
  • Dual Gigabit ports, integrated PoE.
  • Stand with 2 adjustable angles of 40 and 50 degrees.
  • Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix.

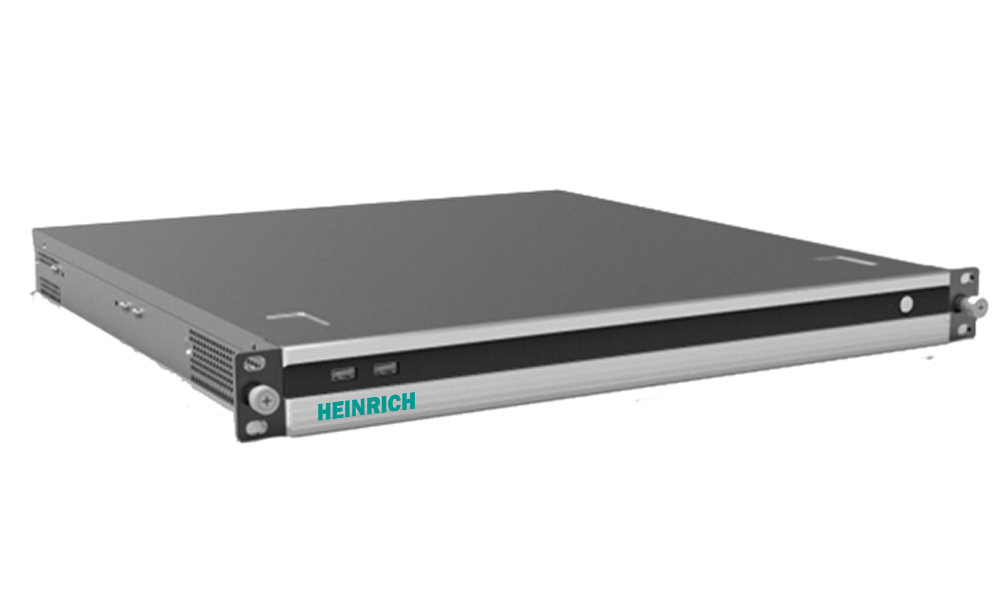

H500

The IP Broadcasting & Intercom Unified Communication system is a one­ stop solution based on IP communication protocol and standard SIP protocol as core protocol, combing with Help Intercom, SOS call, Emergency Broadcasting, Emergency Consultation, Visualized Dispatch, Real­time Recording, Video Linkage, Alarm Linkage and Digital Map. The system can be integrated with other systems deeply to improve the industry information management, reduce the enterprise operation and maintenance management cost, and improve daily work efficiency and emergency response capability. The system is based on the IP Broadcasting & Intercom UC System Server, it accesses the broadcast & intercom terminal, IP fire alarm gateway, IP camera, SIP voice gateway, SIP phone and gateway devices to realize one­touch hands­free calling and two ­way Intercom, group call, one ­way monitoring, shouting deterrence, zone broadcast, background music, security linkage and other functions represent the development trend of IP, integration and intelligence of broadcast & intercom.

H500
  • Intercom : Shout broadcast, text broadcast,Reservation broadcast, Collect information broadcast.
  • Telephony : Internal call, call transfer, Mobile phone call, fifixed line call.
  • Video Monitor : Real-time preview, preview capture, Intercom linkage, alarm linkage.
  • Digital Map : Layer management, state rendering, Monitor preview, call linkage.
  • Alarm : Fire alarm, help alarm, Plan linkage, alarm traceability.
IP-NAS

IP-NASServer of IP network audio system and IP PA system. Support Windows 2000, Windows 2007, Windows 7. All display in English Built-in system set up, system monitor, media player, program timer, system memory functions. Cloud broadcast Mp3 file online, scheduled and matrix at presented time to designated loudspeaker zones. Each equipment’s working status could be monitored and displayed on this software.

Flexible multiple level loudspeaker zone definitions, end user can define loudspeakers into as many as possible zones at the same time. Built-in weekly timer could broadcast pre-recorded voice message, bell, song to selected zones by trigger contact or manually operation.

The head equipment to encode analog sources into digital source to be transferred over network. Support max 5 different sound cards for simultaneously sources collection. One software packet includes administrator and branch server and alarm server. Graphic maps display for visually simple monitoring and operation.

DPA Series

DPA SeriesThe DPA range digital Class-D power amplifier is of switching power technology, which features of minimum power consumption and much higher efficiency up to 95% moreover it help to save installation rack space, generate less heat so as to extend its performance life span as a result. Automatic standby enable after no detection of signal input for one minute, immediately wake up at sight of any input. DPA Series is available in 120W/125W/240W/500W with single channel, Dual and four channels.

HCplayerVO
    HCplayerVO
  • 1U height and both tabletop & rack mount type.
  • Built-in CD player, MP3, tuner & remote control.
  • USB & SD inputs on front panel for MP3 player.
  • AM/FM tuner each memory of 99 bands.
  • One CD/MP3 stereo output and one tuner stereo output.
  • Eject, play, stop, play mode, prev, next, USB/SD & mute functional buttons for CD/MP3 player.
  • AM/FM, ST/MON, MEO, Auto/Manual, Up, down & 1-6 number buttons for tuner.
  • Remote control over music selection and volume control.
DMX108D
    DMX108D
  • High-speed processing DSP Chip, the new generation of AFC algorithm to eliminate the feedback faster and make system more stable.
  • 8-channel Phantom Power Microphone/Line input, 8-channel circuit Output.
  • 8- channel External control input and 8- channel Logic output.
  • Application includes Auto Mixer (Limiter threshold and Gain), Routing, Audio Processing and special signal.
  • Connect with GUI interface directly through Ethernet, Easy and efficient to set.
  • Power off automatically save function.
  • RS232 interface connect to 3rd party communication.
  • Extensive GPIO Capabilities.
  • Option to configure with Dante Module.
OHS15/T

OHS15/THEINRICH Loudspeakers are IP66 and as per EN54 required terminals and outdoor applications used for all required standard IEC60849, BS5839 part 8 OHS series is fully comply as per EASE /CATT/Ulysses. The OHS15/T & OHS30/T is a waterproof horn speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in horn speaker driver is designed of wide frequency response 250-8kHz(OHS15/T) & 300-13kHz(OHS30/T), the multiple power taps 15W & 30W are helpful for different applications varies from room size and ambient noise surroundings. The ABS enclosure and stainless bracket are of white color. Easy and secure wall mount installation through the supplied stainless mounting bracket. It is ideal choice for industrial and commercial applications in the outdoor area of parking, park, garden, corridor and playground where paging is needed.

IP Network & Intercom remote paging microphone – PM8

PM8The HEINRICH Audio PM 8 IP Network Paging Micro phone or IP paging console or IP paging statoon is used to paging over network to remote speaker zones. This paging microphone could be installed to anywhere of the LAN system.

The IP network paging microphone has several paging modes include: zone paging, group paging, all zone paging, two-way intercom, conference system,discussion system & voting system. The IP network paging microphone is built-in a LCD to display program status and its IP address, end -user is accessible to change the IP setting with password. It is built -in a 1W speaker with excellent sound clearance so as to ensure the communication is smooth and clear. This micro phone design is adopted advance d technology to avoid echo noise and to avoid data delay as well.

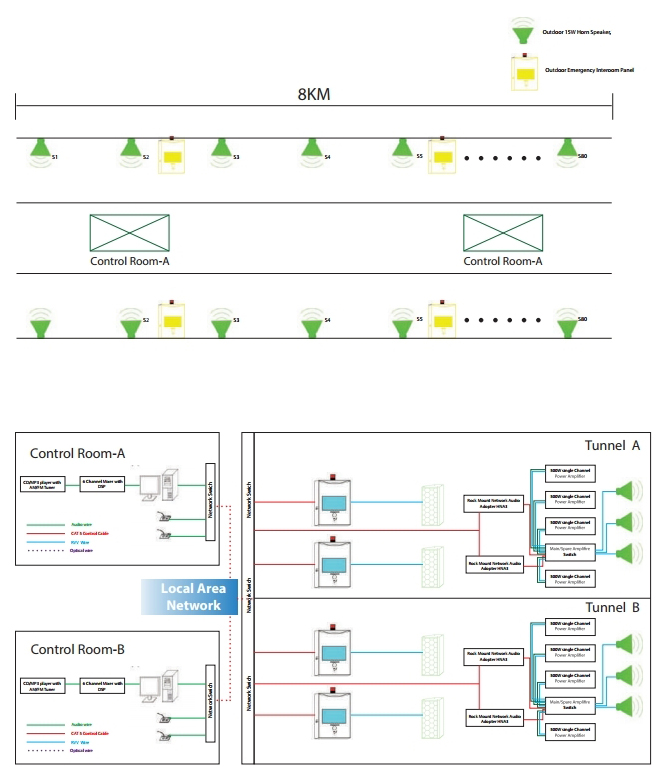

Tunnel Installation

Tunnel Installation
